CONTEX SD One 44 MF / R44 Scanner

Where to Find it

‍

You can buy the Contex SD One 44 MF / R44 scanner directly from GlobalVision.

‍

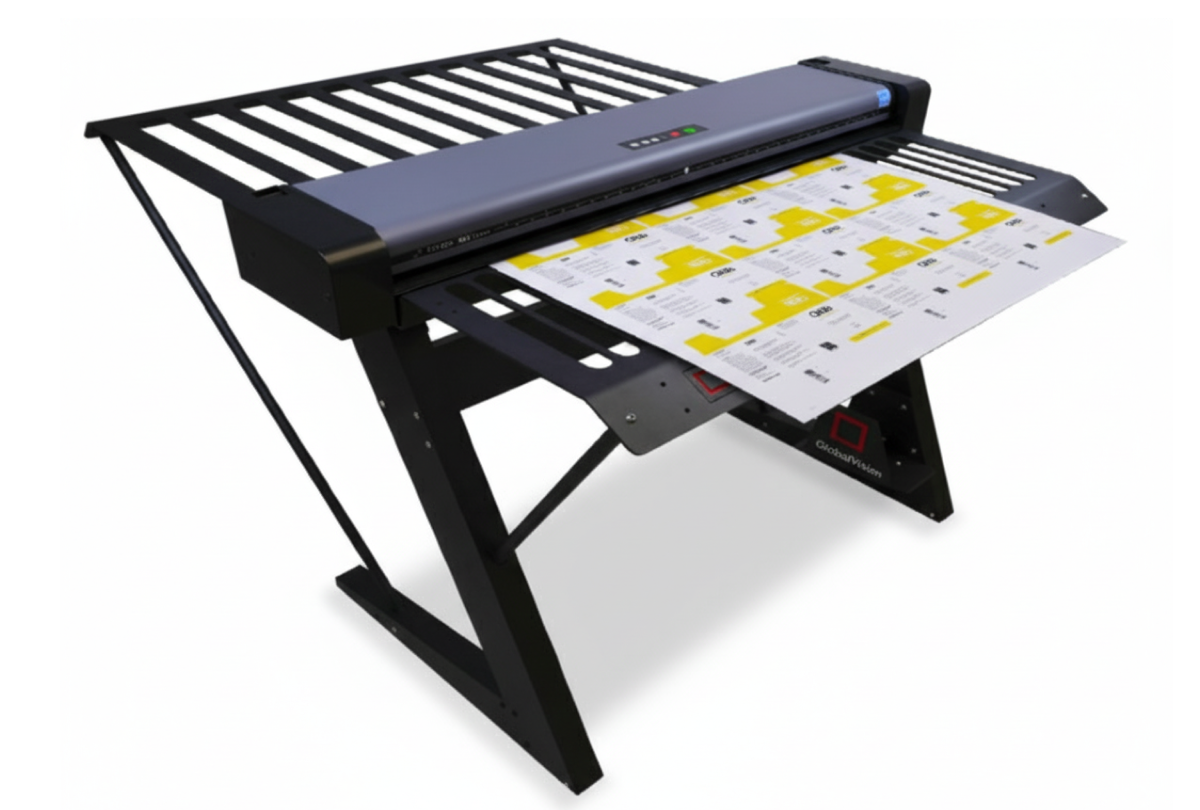

An Overview of the Contex SD One 44 MF / R44 Scanner

The Contex SD One 44 MF is a 44-inch wide, roll-fed CIS (Contact Image Sensor) scanner designed for low- to mid-volume large-format environments.

‍

It features a built-in 7″ multi-touch controller, Wi‑Fi and Ethernet connectivity, plus seamless integration with wide-format printers to create powerful all‑in‑one MFP (scan‑copy‑print) workflows.

‍

Key Features of the Contex SD One 44 MF / R44 Scanner

‍

• 44″ Scan Width & Roll Media Support: Handles documents up to 1200 mm (47.2″) wide and 50″ long, perfect for posters and full sheets.
• 600 dpi Optical Resolution: Offers high-fidelity image capture with 48-bit color and 8-bit grayscale depth.
• CleanScan CIS with Dual-Sided LED & Color Fringe Removal: Captures sharp scans without shadows or digital noise, thanks to CIS technology enhanced with Contex’s patent-based color fringe correction.
• Embedded Quad-Core Processor & Touchscreen: The built-in controller features a tablet-style interface for preview, markup, annotation, and file routing, no PC required.
• Flexible Connectivity & Workflow Options: USB‑drive scans, network share (Ethernet), Wi‑Fi, email, FTP, and cloud destinations (Dropbox, Google Drive, OneDrive, Box) via controller.
• Energy-Efficient & Compact: ENERGY STAR compliant, compact and portable (around 14 kg), and available in optional low/high stands for optimized ergonomics.

‍

Use Cases

‍

• Regulated Packaging & Labeling: Scan full-size press sheets, cartons, leaflets, and label mockups to support compliant artwork review and recordkeeping.
• Submission-Ready Documentation: Digitize technical drawings, QMS records, and packaging specs required for regulatory filings (e.g., FDA, EMA, Health Canada).
• Braille & Accessibility Compliance: Capture high-resolution scans of packaging with embossed Braille to verify height, placement, and positioning.
• Color Accuracy Validation: Support Delta E measurements and Pantone color matching by preserving high-resolution scans used in visual QC and print inspections.
• Artwork Change Control: Document revised print proofs or annotated materials as part of regulatory change control, version tracking, and deviation justification.
• Quality Assurance & Print Inspection: Retain large-format samples with verified color, alignment, and substrate integrity for regulatory and GMP compliance.
• Regulatory Archive Management: Create searchable digital archives of artwork history, SOPs, and approval forms for inspection readiness and retention policies.
• Cross-Functional Review Collaboration: Scan and digitally route annotated documents between RA, QA, marketing, and labeling teams to streamline approval cycles.

‍

Technical Specs

‍

• Maximum Document Size: A0+ / 44 inch (1118 mm)
• Maximum Scan Length: 50 inch (1270 mm)
• Maximum Resolution: 9600 dpi
• Optical Resolution: 600 dpi
• Maximum Media Thickness: 0.03 inch ( 0.75 mm)
• Scanning Speed: 1.9 inch/sec
• Sensor Type: CIS
• Connectivity: Ethernet
• Dimensions: (L x W x H): 52.9” x 8.” 9x 4.9” (1344 x 227 x 125 mm)
• Color Bit Depth: 48-bit
• Weight: 14.1 kg (31 lbs)
• Power Requirements: 100 - 240 V, 60 / 50 Hz, 33 W
• Compliance: Energy Star, RoHS, cUL, CE, Gost-R, VCCI, Ukr / compliance

‍
